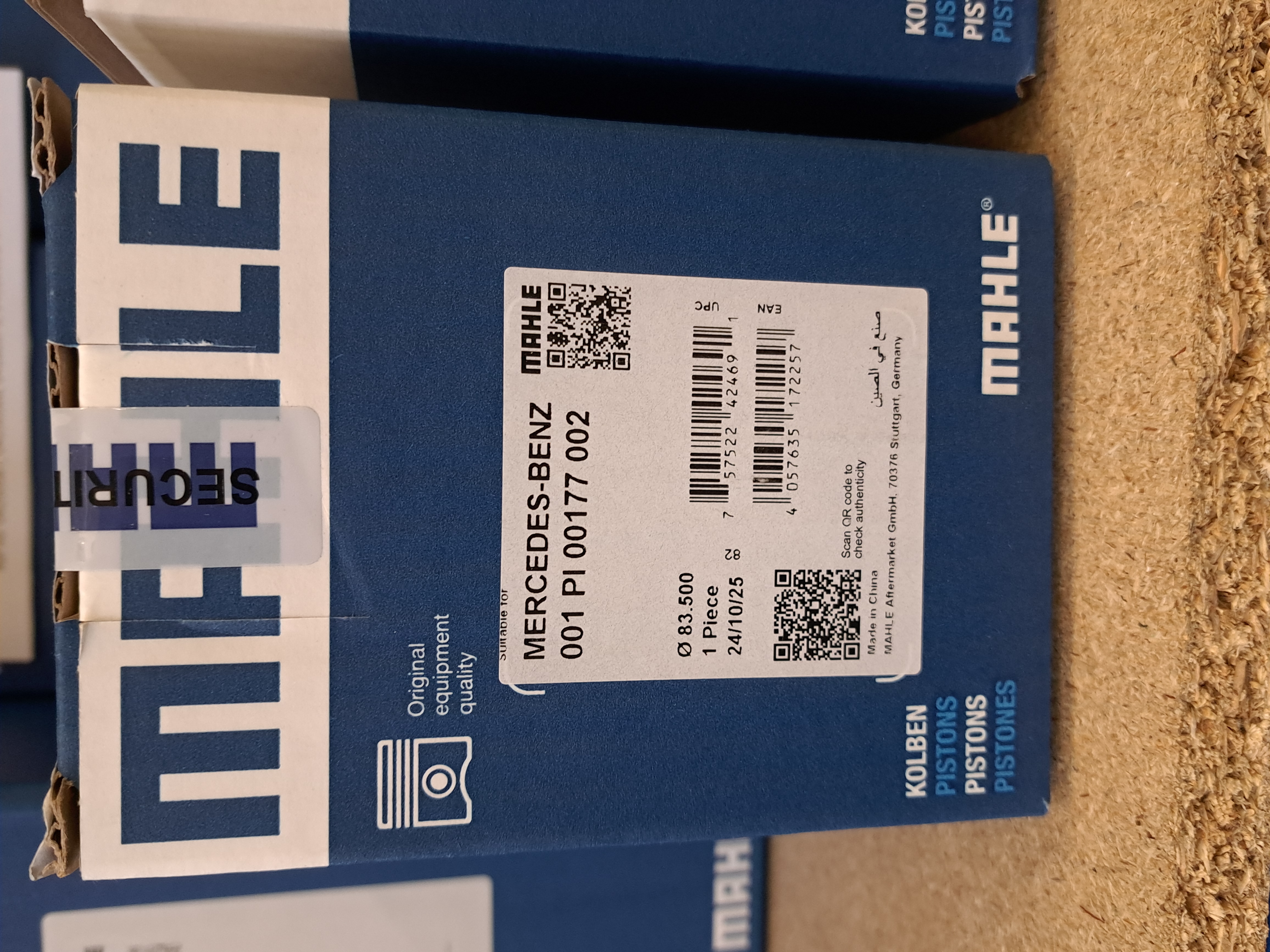

Piston
€61.10 per pc
- For more information, email or write your question in the contact form. We reply swiftly! You can place an order via the contact form or to our email info@enginemachinery.com
- Call us for more information
Contact us for the best price.
Description
Article no.: 001 PI 00177 002
MERCEDES-BENZ: OM 651.913, OM 651.916, OM 651.925, OM 651.930, OM 651.940, OM 651.955, OM 651.956.
Cylinder bore [mm]: 83.5
Length [mm]: 75.5
Compression height [mm]: 48.5
Bolt length [mm]: 66
Bolt diameter [mm]: 30
Recess depth 1 [mm]: 13.2
Recess diameter [mm]: 49.4
Machined: with pocket/recess for oil nozzle
Surface: Coated
Supplementary article/Supplementary info 2: with piston ring groove
Supplementary article/Supplementary info 2: with cooling channel
Distance. piston top edge - piston ring 1 [mm]: 10
Manufacturing number: 83 L 178
Piston clearance [mm]: 0.06
Component number: 1. R2.00 IF CrK
Component number: 2. M1.75 IFU P
Component number: 3. DSF 2.00 Cr
Package height [cm]: 12.8
Package length [cm]: 9.5
Package width [cm]: 9.5
Net weight [g]: 900
